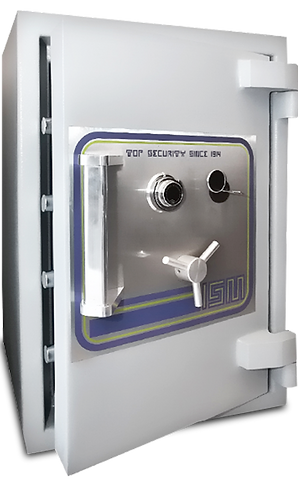

Bullion - U.L. TL30

bullion tl-30 high security safe

Superior safes,

innovative designs,

maximum security.

ISM

Special Features:

Two hour, 350 degree fire rating. Tested at temperatures up to 1,850 degrees for a period of two hours. Interior temperatures did not exceed 350 degrees. Extra strength, six sided protection against concentrated attacks with mechanical and electrical tools. This safe is a strong unit at an affordable price. Door barrier thickness of 3.54". New dimensions that allow models to fit through narrow doorways and into tight spaces.



Door:

Constructed of outer and inner steel plates electrically welded together and enclosed in a thick casting of CS-650 monolithic anit-penetration composite material.



Locks:

This safe features a U.L. group 2 combination lock and a maximum security key lock. (2 bit + 2 stems) Locking mechanizm includes a special material which protects against sophisticated drilling from all directions.



Bolt Work and Locking Mechanisms:

Three way active bolt work with U.L. TL-30 approved rating. Superior bulit in technology is designed to repel threats and secure the safe. Bolt detent system that further secures the entire bolt work mechanism by protecting the bolts when the door is open. Glass plate protection on all locks and in all vital mechanism areas. When the door is attacked, glass will shatter, activating a double re-locking mechanism which cross locks the bolts.



Interior Fitting:

Adjustable, removable shelves. Custom interior lockers - (optional)



Models

BU - 181412

Outside: 25H x 21W x 24D

Inside: 18H x 14W x 12D

Weight: 930 LBS

Shelves: 1



BU - 251816

Outside: 32H x 25W x 28D

Inside: 25H x 18W x 16D

Weight: 1,376 LBS

Shelves: 1



BU - 352120

Outside: 42H x 28W x 32D

Inside: 35H x 21W x 20D

Weight: 2,267 LBS

Shelves: 2



BU - 352420

Outside: 42H x 31W x 32D

Inside: 35H x 24W x 20D

Weight: 2,416 LBS

Shelves: 2



BU - 452120

Outside: 52H x 28W x 32D

Inside: 45H x 21W x 20D

Weight: 2,792 LBS

Shelves: 3

BU - 552120

Outside: 62H x 28W x 32D

Inside: 55H x 21W x 20D

Weight: 3,148 LBS

Shelves: 3



BU - 552420

Outside: 62H x 31W  32D

Inside: 55H x 24W x 20D

Weight: 3,268 LBS

Shelves: 3



BU - 602120

Outside: 67H x 28W x 32D

Inside: 60H x 21W x 20D

Weight: 3,406 LBS

Shelves: 4



BU - 603418

Outside: 67H x 41W x 30D

Inside: 60H x 34W x 18D

Weight: 3,750 LBS

Shelves: 4



BU - 633218

Outside: 70H x 39W x 30D

Inside: 63H x 32W x 18D

Weight: 3,750 LBS

Shelves: 4



BU - 652818

Outside: 72H x 35W x 30D

Inside: 65H x 28W x 18D

Weight: 3,600 LBS

Shelves: 5



BU - 653622

Outside: 72H x 43W x 34D

Inside: 65H x 36W x 22D

Weight: 4,422 LBS

Shelves: 5



BU - 683120

Outside: 75H x 38W x 32D

Inside: 68H x 31W x 20D

Weight: 4,545 LBS

Shelves: 5



BU - 723625.5

Outside: 79H x 43W x 37.5D

Inside: 72H x 36W x 25.5D

Weight: 5,355 LBS

Shelves: 5



Add-Ons

  • Left Swing – Optional (Special order, no upcharge)

  • Preparation (only) for movement time-lock (No charge, by request)

  • Custom interior secured compartments (By request)

  • Additional shelves (By request)

Weight Tolerance - 5%          Dimensions Tolerance + or - 0.5"          Add 2" to outside depth for 3-Spoked handle, 3.55" for pull handle
